RIDGID 1/2" - 2" NPT Hammer Chuck Machine
Model 535M Threading Machine 1/2"-2" NPT, 115V with Automatic chuck

1/2" - 2" NPT Hammer Chuck Machine


Model 535M Threading Machine 1/2"-2" NPT, 115V with Automatic chuck

Product #: RDG93287

$11,124.57 /EA
Login for contractor price
Regular: $11,124.57 /

11124.57

/EA

Available Online: 1
Pre Order Item
Estimated Availability Date:
Availability in Store:

Call for Availability : 403-287-5340


QTY:

ADD TO CART
BUY DIRECT
RIDGID®, a leading manufacturer of innovative tools for the professional trades, offers over 300 types of tools.

No customer reviews for the moment.

Product Description

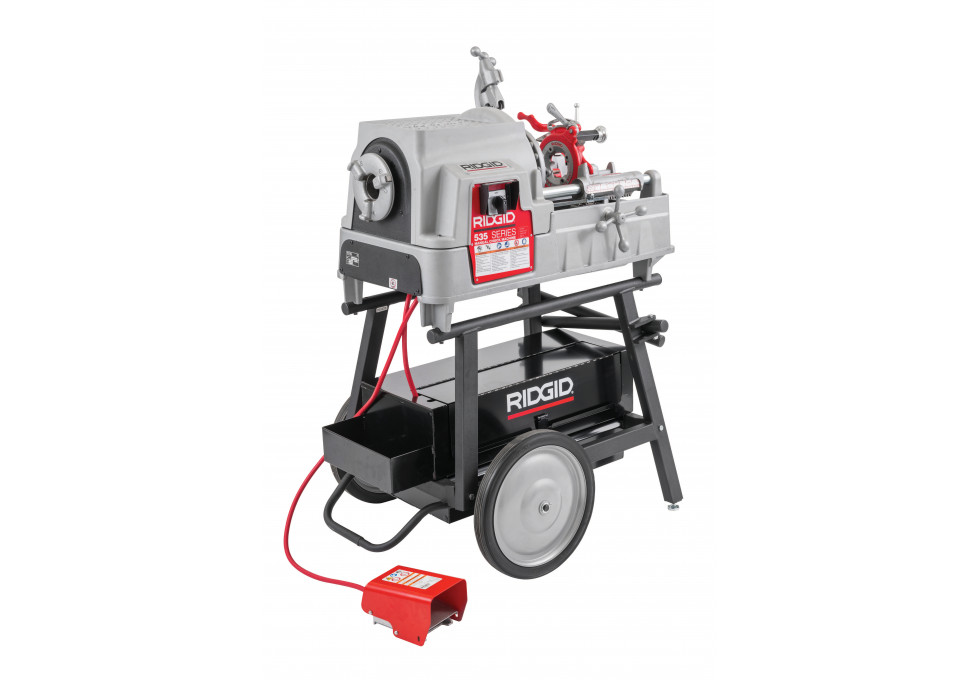

The Ridgid 1/2" - 2" NPT Hammer Chuck Machine. 535M 115V 36 RPM 811 NPT DH

Build

  • 36 RPM universal motor provides ample power for cutting threading and reaming 1/2" - 2" pipe.
  • Integrated length gauge for accurate pipe cutting.
  • Large oil reservoir for uninterupted threading
  • Manual speed check with replacable jaws centers and grips pipe quickly.
  • Includes 811A Die Head and dies for threading 1/2" - 2" pipe
  • Can be used with geared Models 141 and 161 threaders.
  • Uses Model 816/817 semiautomatic, Model 815A self-opening or Model 811A quick-opening die heads.

Approximate Item/Package Dimensions in inches

  • Width: 23.75
  • Height: 27.0
  • Length: 47.5

Approximate Item/Package Weight in pounds

  • Weight: 286.0
Product Specifications
Vendor Part #:93287
Horsepower:0.5
Max Operating Temperature:36 F
RPM:36
Type:AC Universal (Series)
Voltage:115 VLT
Weight:260 LB / 117.9 KG
Spec 1:Pipe Capacity : 1/8"-2" (3mm-50mm) 2 1/2"-4" (62mm-100mm), 4"-6" (100mm-150mm) with 141 and 161 geared threaders.
Spec 2:Bolt Capacity : 1/4"-2" (6mm-50mm).
Spec 3:Switches : Forward/off/reverse and integral foot switch.
Spec 4:Chuck : Speed Chuck™ with three replaceable rocker-action jaw inserts.
Spec 5:Rear Centering Device : Cam-action, turns with chuck.
Spec 6:Cutters : Self-centering, full-floating. Two models available:Standard Model 820 Wheel-Type Cutter, pipe capacity 1/8"-2" (3mm-50mm), bolt capacity 1/4"-1" (6mm-25mm). Optional Model 821 Blade-Type cutter, pipe capacity 1/2"-2" (12mm-50mm). See ordering c
Spec 7:Reamer : 5-flute cone, RH, 1/8"-2" (3mm-50mm).
Spec 8:Oil Pump : Self-priming gerotor oil pump.
Spec 9:Reamers : RH/LH combination reamer available.
Amperage:15
