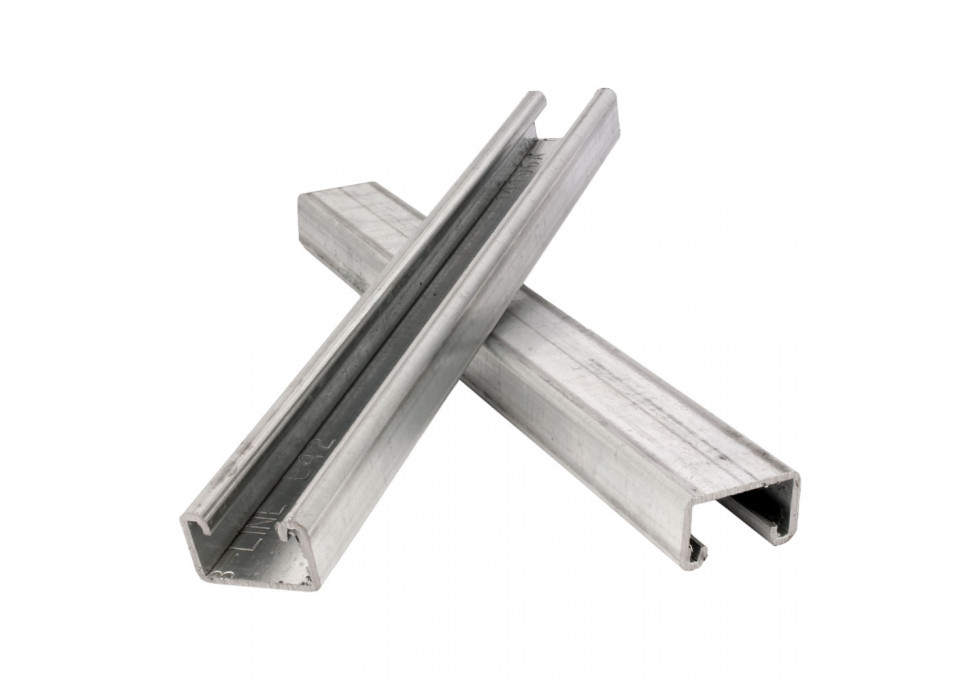

The B-Line 1" x 1-5/8" 12 Gauge Solid Pre-Galv Strut Channel - 10'.

Channel

Metal framing channel is cold formed on our modern rolling mills from 12 Ga. (2.6mm), 14 Ga. (1.9mm), and 16 Ga. (1.5mm) low carbon steel strips. A continuous slot with inturned lips provides the ability to make attachments at any point.

Design Load - (Steel & Stainless Steel)

The design loads given for strut beam loads are based on a simple beam condition using an allowable stress of 25,000 psi. This allowable stress results in a safety factor of 1.68. This is based upon virgin steel minimum yield strength of 33,000 psi cold worked during rolling to an average yield stress of 42,000 psi.

Welding

Weld spacing is maintained between 2-1/2 inches (63.5 mm) and 4 inches (101.6 mm) on center. Through high quality control testing of welded channels and continuous monitoring of welding equipment, B-Line provides the most consistent combination channels available today.

Approximate Item/Package Dimensions in inches

• Width: 0.8125
• Height: 1
• Depth: 120

Approximate Item/Package Weight in pounds

• Weight: 10.263
