Milwaukee Power Tools M12 FUEL™ INSIDER™ Extended Reach Box Ratchet
INSIDER Box Ratchet - Unrivaled Access with INSIDER™ Box Ratchet Sockets

M12 FUEL™ INSIDER™ Extended Reach Box Ratchet

INSIDER Box Ratchet - Unrivaled Access with INSIDER™ Box Ratchet Sockets

Product #: MWT3050-20

$398.00 /EA
Login for contractor price
Regular: $398.00 /



Available Online: 0
Pre Order Item
Estimated Availability Date:
Availability in Store:

Call for availability. : 403-287-5340



Since the company began in 1924, Milwaukee Tool has led the industry in developing innovative solutions that deliver increased productivity and unmatched durability for professional construction users. Dedicated to building advanced, trade-specific power tools, hand tools, and a wide variety of accessories for elite professionals.

No customer reviews for the moment.

Product Description

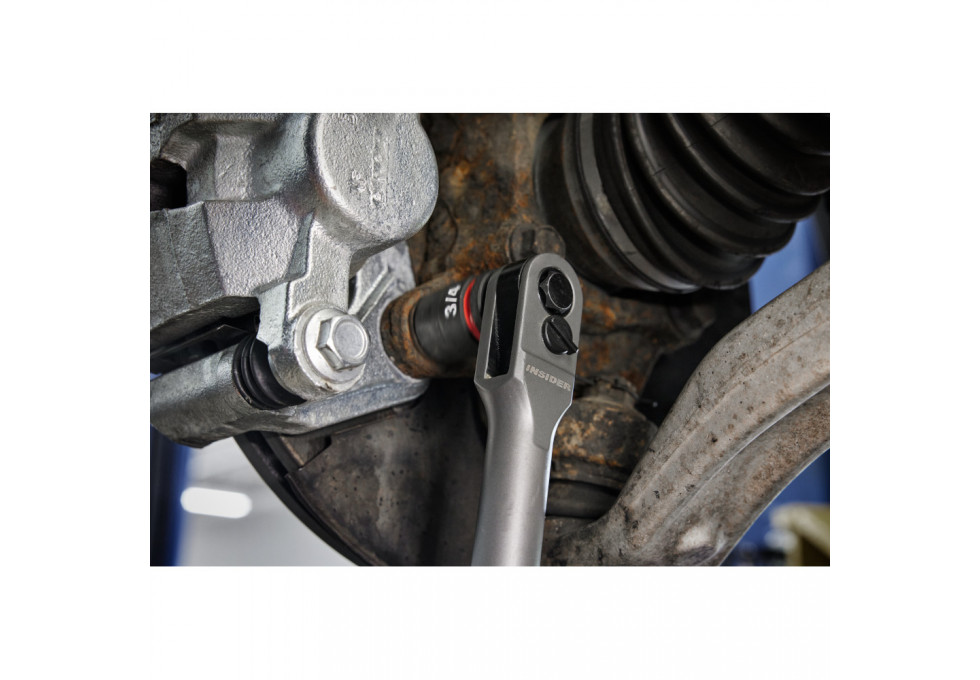

The Milwaukee M12 FUEL™ INSIDER™ Extended Reach Box Ratchet. The MILWAUKEE® M12 FUEL™ INSIDER™ Extended Reach Box Ratchet is a new-to-world solution that reinvents the traditional ratchet. The low-profile head design allows sockets & adapters to insert directly into the tool. The M12 FUEL™ INSIDER™ delivers UNRIVALED ACCESS and over ¾” shorter head profile size with the socket to reach deep into the engine bay and fit into the tightest spaces. The INSIDER™ delivers the combination of 60 FT-LBS OF MAX TORQUE and 350 RPM’s to remove stubborn fasteners and complete more work faster. Mechanics will experience the ULTIMATE VERSATILITY with the provided MILWAUKEE® INSIDER™ Box Ratchet Sockets (8-19, & 21mm), ¼” Hex Bit, ¼” anvil adapter, & 3/8” anvil adapter to tackle any job in the shop. The Box Ratchet 6 Point Sockets are pass through up to 15mm & 9/16” to run nuts on threaded rod and eliminate the frustration of sockets bottoming out. The M12 FUEL™ INSIDER™ Extended Reach Box Ratchet is part of the M12™ System, which is fully compatible with over 150 solutions.


  • Unrivaled Access with INSIDER™ Box Ratchet Sockets
  • Best combination of speed (350 RPM) & torque (60 ft./lbs)
  • Ultimate Versatility
  • Includes 13PC Metric INSIDER™ Box Ratchet Sockets: 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 21
  • Includes 3 INSIDER™ Box Ratchet Adapters: 1/4" Hex, 1/4" Anvil, 3/8" Anvil
  • POWERSTATE™ brushless motor delivers maximum power and longer motor life
  • Can be used manually without engaging the tool’s motor
  • Dual LED lights to illuminate work areas
  • Extended reach neck for ultimate access and reduce knuckle busting
  • On-board battery fuel gauge displays remaining run time
  • Extended paddle switch for multiple grip positions

Manufacturer Warranty

  • 5 Year

Approximate Item/Package Dimensions in inches

  • Width: 4.37
  • Height: 16.18
  • Length: 4.37

Approximate Item/Package Weight in pounds

  • Weight: 5.4
Product Specifications
Vendor Part #:3050-20
Drive Size:Multiple Drive Size Set
Powered Tool Power Source:Electric - Cordless
MFG Part # (OEM):3050-20
Cordless / Corded:Cordless
Case Included:No
Maximum RPM:350
Maximum Torque (in-lbs):720
Length (in):15.2
CSA Certified:No
ETL Listed:No
UL Listed:Yes
Package Contents:(1) M12 FUEL Insider Extended Reach Box Ratchet, (1) Socket Rail, (1) 8-19, 21mm Socket Set, (1) 1/4" Hex Adapter, (1) 1/4 Drive Anvil Adapter, (1) 3/8" Drive Anvil Adapter
Manufacturer Warranty:5 Year
Net Tool Weight (lbs):2.25
Number of Batteries Included:0
Battery Voltage (V):12
Charger Included:No
