FEIN Power Tool Company Handheld Core Drill - QuickIN Plus - 1200 W / KBH25-2U
ELECTRIC - 0-1,600 RPM - Torsion-Free Barrel-Type Motor Housing - Torque Slip Clutch - Speed Control - Reversible - 7.5 lbs - For hand drilling holes into metal

Handheld Core Drill - QuickIN Plus - 1200 W / KBH25-2U


ELECTRIC - 0-1,600 RPM - Torsion-Free Barrel-Type Motor Housing - Torque Slip Clutch - Speed Control - Reversible - 7.5 lbs - For hand drilling holes into metal

Product #: FEIKBH25-2U

$1,252.00 /EA
Login for contractor price
Regular: $1,252.00 /

1252

/EA

Available Online: 1
Pre Order Item
Estimated Availability Date:
Availability in Store:

Please Call for Special Orders : 403-287-5340


QTY:

ADD TO CART
BUY DIRECT

No customer reviews for the moment.

Product Description

The Fein KBH 25-2U Handheld Core Drill is built with new drilling technology that enables rapid work progress with considerably less effort.


Build

Work up to 6 times faster due to innovative drilling technology: Pilot hole drilled to a depth of 3/16 in [5 mm] at 1,600 rpm, followed by disengagement of the pilot bit and automatic speed change to 520 rpm for optimal cutting speed for carbide core bits. The carbide core bit finishes drilling the desired hole diameter with minimum effort and specially developed core bit cutting geometry.

Usable on all common metals and surfaces by adjusting the speed to the particular job.

Very safe operation due to the torque slip clutch. Protects the user when overloaded by separation of the driver and driven sides.

Mechanical 2-speed gearbox with speeds from 0-1,600 rpm for efficient twist drilling and forward / reverse rotation for thread tapping up to 1/2 in [M12].

Comes with a powerful motor, torsion-free barrel-type motor housing, torque slip clutch, infinitely variable electronic speed adjustment, electronic overload protection, reverse function, and self-start lock.


Works with a wide range of accessories!

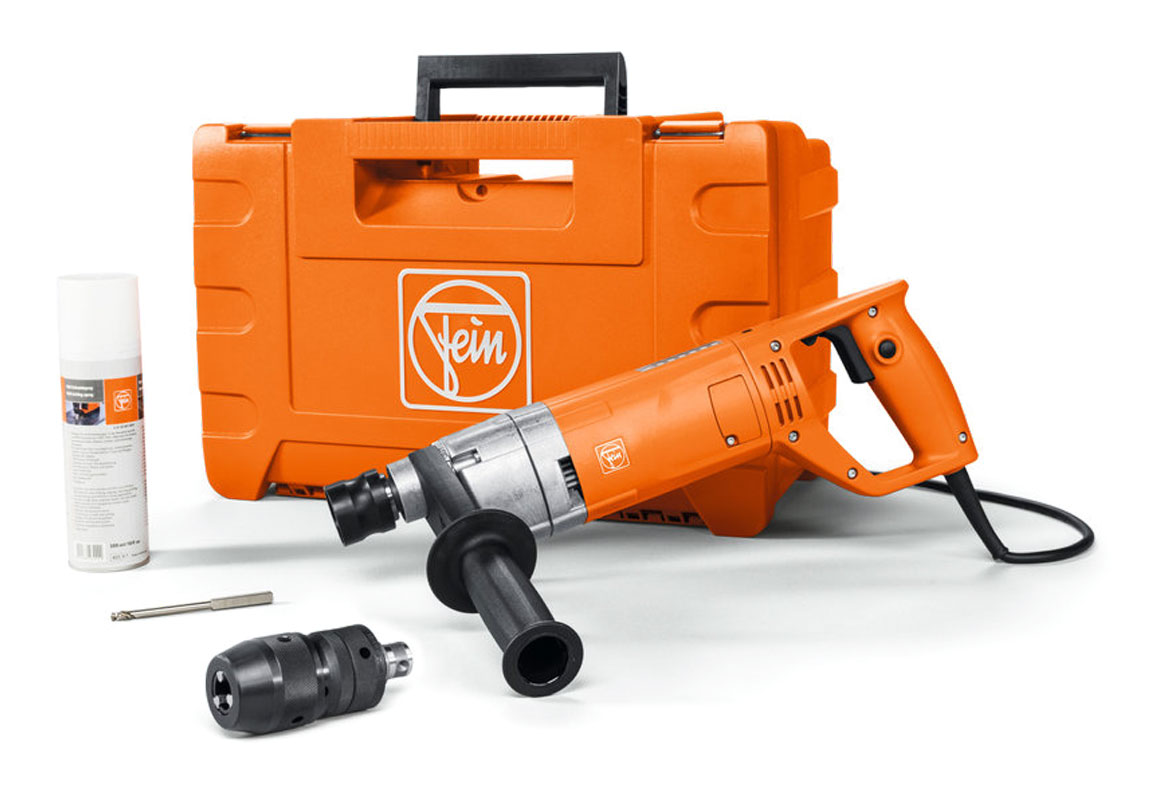

In the Box

The following is included with this Handheld Core Drill (KBH 25-2 U):

  • (1) Handheld Core Drill (KBH 25-2 U)
  • (1) Pilot Bit
  • (1) Side Handle
  • (1) Cutting Spray
  • (1) Quick-Action Chuck 1-8" to 5/8" Diameter
  • (1) Plastic Tool Case

Accessories Sold Separately.

Product Specifications
Vendor Part #:KBH25-2U
1st Speed No Load Speed:0-520 RPM
2nd Speed No Load Speed:0-1,600 RPM
Cable Length:[13 foot]
Chuck Type:QuickIN Plus & Quick Action
Max Hole Diameter - Core Bit:1 inch
Weight:7.5 lbs
Tapping:1/2 inch
Power Consumption:[1200 watts]
Power Output:680 watts
Full Load Torque:442 in/lbs
No Load Torque:442 in/lbs
Capacity in Stainless Steel Dia.:1 inch
Min. Clearance:1-1/16 inch
Max Hole Diameter - Steel Core Bits:1 inch
Max Hole Diameter - Aluminum Core Bits:1-3/16 inch
Max Hole Diameter - Steel Hole Saws:3-1/8 inch
Max Hole Saw Depth:3/16 inch
  • Drilling Holes in Steel
  • Drilling Holes in Aluminum
